IFR Flights of 13MIKE

by Fred J. Calfior and Douglas W. Miller

APPENDIX B

New York Low Altitude Enroute Chart L-28

These charts are obsolete and are not for real-world navigation.

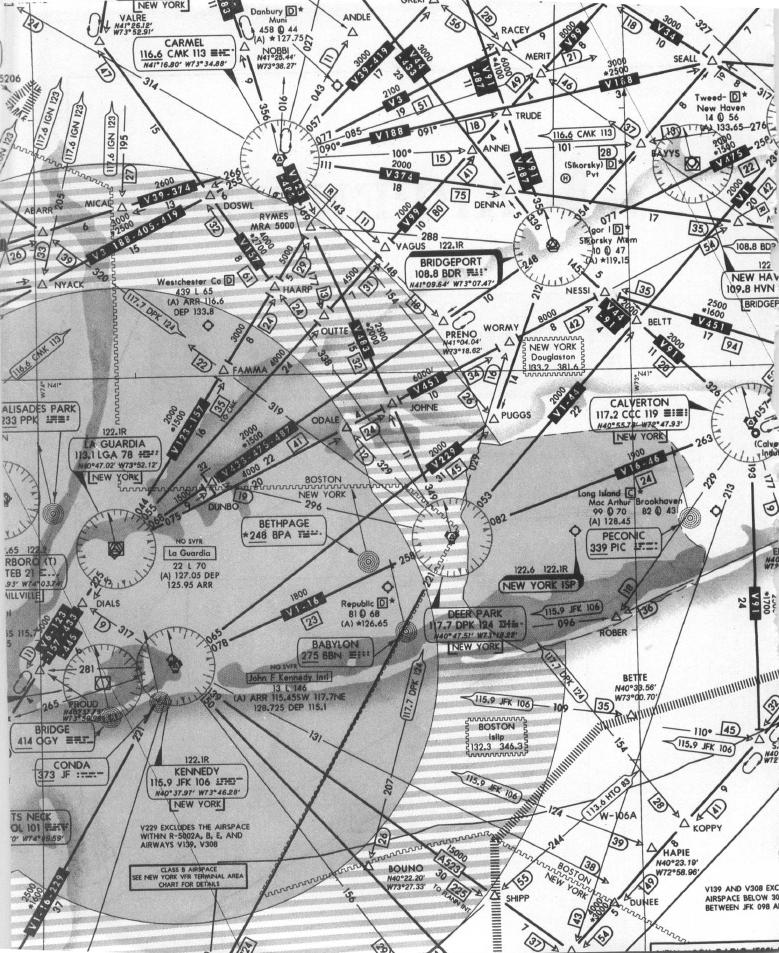

The Low Altitude Enroute Chart, for the New York flight scenario, is on the following page. The map scale is 1" = 8 NM. Study the chart, there is a wealth of information on it. The area that this section of the chart covers is illustrated in Figure B. 1.

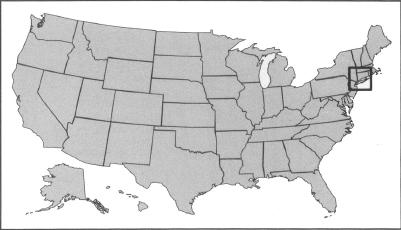

Figure B.1.
