Flight Simulator Co-Pilot

by Charles Gulick

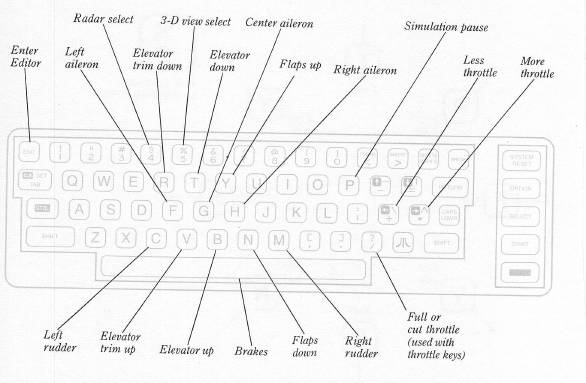

Atari Aircraft Controls

(figure)

For radio controls, press CTRL and one or more keys:
COM radio CTRL C, >>> Increase high digits (<<< for decrease)
CTRL C, CRTL C, >>> Increase low digits
NAV radio CTRL N, 1 Select NAV1 for frequency changes
CTRL N, 2 Select NAV2
CTRL N, >>> Increase high digits on selected NAV radio (<<< for decrease)
CTRL N, CTRL N, >>> Increase low digits
ADF CTRL A, >>> Rapidly press one, two, or three times to select digits 1, 2, or 3
VORS OBS CTRL V, 1 Select VOR OBS1
CTRL V, 2 Select VOR OBS2
CTRL V, >>> Increase bearing (<<< for decrease)
Transponder CTRL T Rapidly press one, two, three, or four times to select digits 1, 2, 3, or 4
CTRL T, >>> Increase digit (<<< for decrease)
Note: CTRL X is treated as CTRL T

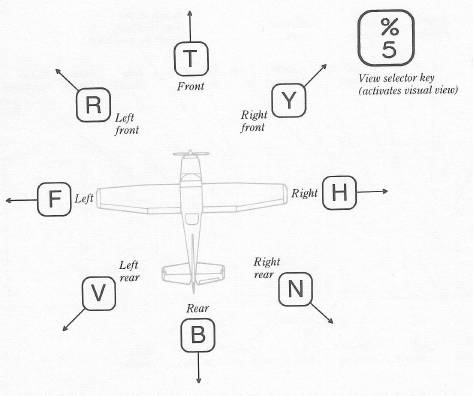

View Selector Controls for the Atari

(figure)

For additional controls, press CTRL and one or more keys:
Keys Result
CTRL B Adjusts the altimeter
CTRL D Adjusts the heading indicator
CTRL E Logs in the Scenery Disk
CTRL L Toggles the lights on or off
CTRL S Saves the current flight parameters to mode library
CTRL X Recalls mode library from disk
CTRL Z Saves mode library to disk
CTRL = Recalls mode from library (resets the simulator)
